AllFocusTM EDF Image Gallery - Printed Circuit Board #2
Images of a Printed Circuit Board were acquired with Motorized Lift controlled by ZStackTool and Canon Digital Rebel camera controlled by Canon Remote Capture. The lens was Canon EF 100mm f/2.8 USM Macro Lens with Canon Extension Tube EF12 II. Illumination was provided by Phoenix DRLLED Ring Light. The lens was set to Av=4.0; z-spacing in the stack was 0.2 mm. Z-stack of 29 images was processed with AllFocus V0.95.

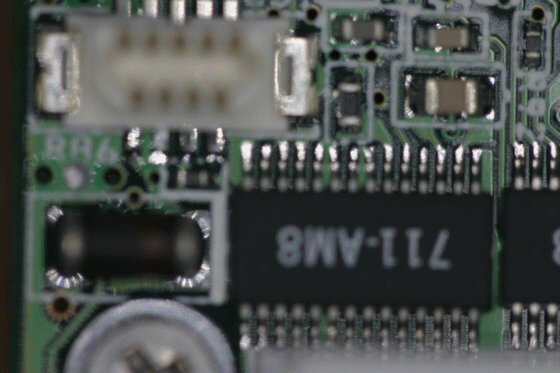

Left image is the Z-stack animation, right image is the Merged Image produced by AllFocus. Animation shows every second image in the stack.
