AllFocusTM HDR Image Gallery - Electronic Connector

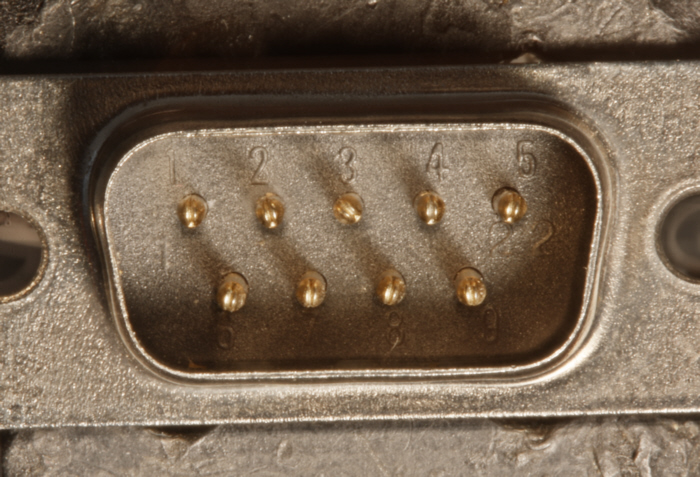

22 images of an electronic connector were acquired with a Canon 40D camera and a Canon EF 100mm f/2.8 USM Macro lens.  The camera was mounted on a camera stand.  Aperture setting Av=32 for greater depth of field;  ISO=100; AWB.  Exposure time ranged from Tv=1/4 to Tv=30 sec.  Exposure stack was processed with AllFocus V0.991.  First image is the stack animation (not all images are shown), second image is the Merged Image produced by AllFocus.  The merge method was average exponentially weighted by focus function.

Full-resolution Z-stack is available for download - DSUB3.zip (~55MB)
