AllFocusTM EDF Image Gallery - Coin

Images of a silver one-shekel coin, 30 mm in diameter, were acquired with a Canon 40D camera and Canon EF 100mm f/2.8 USM Macro Lens.  The camera was remotely controlled by a PC running Canon Utility V.2.1.0.1 in Live View mode.  Illumination was provided by a single lamp positioned to the top left of the coin at 14" height.  Aperture = 8, shutter speed = 0.5, ISO = 100, white balance tungsten.  The camera was placed on a bean bag at ~20 deg. angle.  Spacing in the stack was one medium step of the Canon Utility program.  Z-stack of 43 images was processed with AllFocus V0.98.

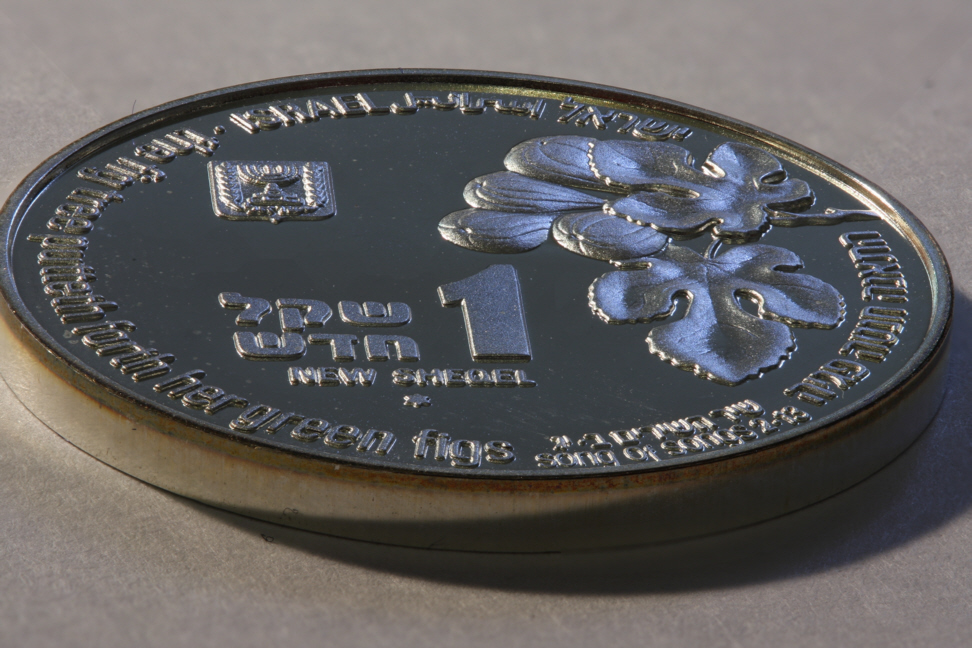

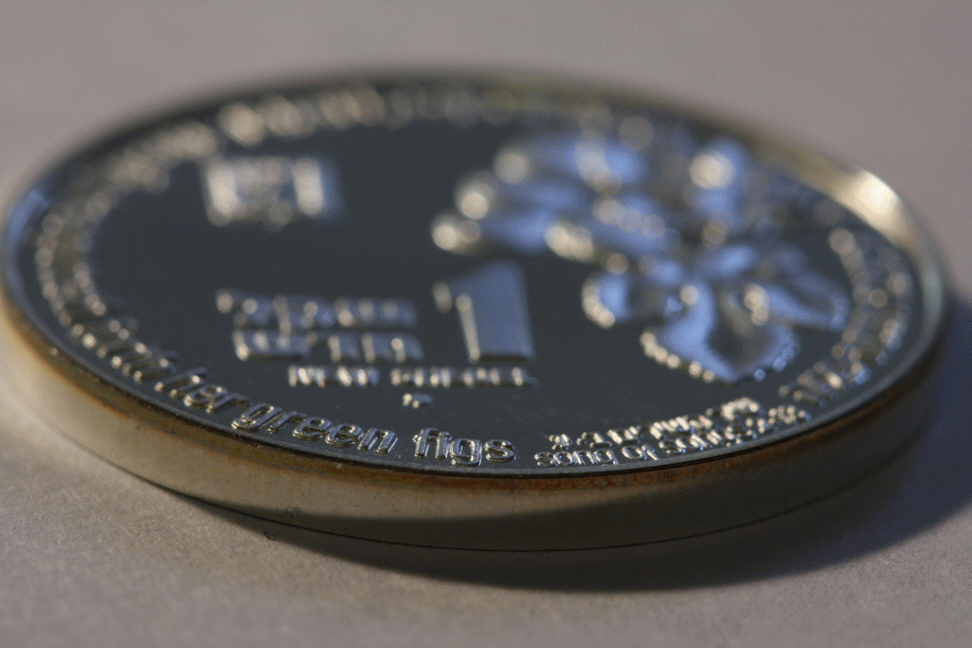

First image is the Z-stack animation (not all images from the stack are shown in the animation), second image is the Merged Image produced by AllFocus.
